Lecture Day 2  ·  Session 1 of 5

VCF Format & the Two-Step Pipeline

🕐 9:20 – 9:50 🎤 Riza Pasco 🕑 30 min
☀ 1k1RG Project: DAY 4: DATA PREPARATION PIPELINE FOR SNP-SEEK

By Riza May Pasco

Explains the workflow for transforming genomic datasets, including the conversion of VCF files into HDF5 formats for integration into the database.

Note: To follow along this module, make sure to have completed the setup guide.

THE TWO-STEP PROCESS

The data preparation involves two main steps:

  1. Convert VCF to text matrix - Using custom scripts with awk and/or bcftools
  2. Convert text matrix to HDF5 - Using a compiled C++ program for optimized storage

STEP 1: VCF TO TABULAR TEXT MATRIX, SAMPLE LIST, AND SNP POSITIONS

INPUT FILE (VARIANT CALL FORMAT)

A standardized file format used to store genetic variants, including their genomic positions, reference and alternate alleles, quality scores, and sample-specific genotype data. The detailed specifications for the format can be found in the official VCF specification document.

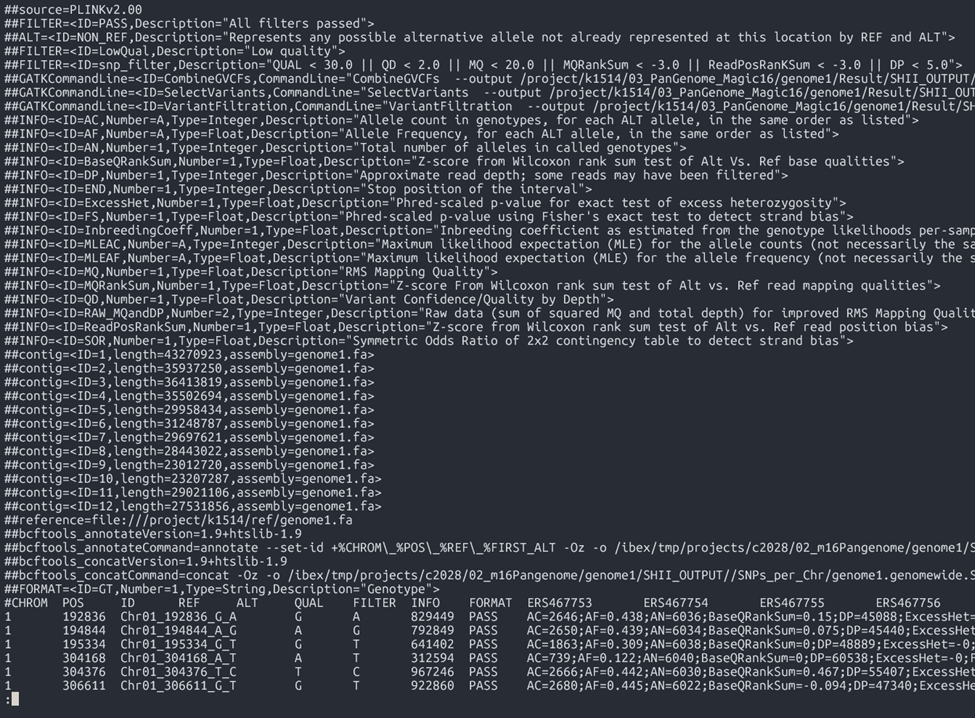

VCF file example

OUTPUT FILES

  1. Matrix: This is a matrix with rows corresponding to SNPs. The columns represent the following (from left to right):
    • CHR: Chromosome number
    • POS: SNP position
    • REF: Reference allele
    • ALT: Alternate allele
    • Sample columns: Diploid genotype calls (Sample1, Sample2, Sample3, etc.)

    Note: Missing calls can be encoded by either 00 or .. (two dots)

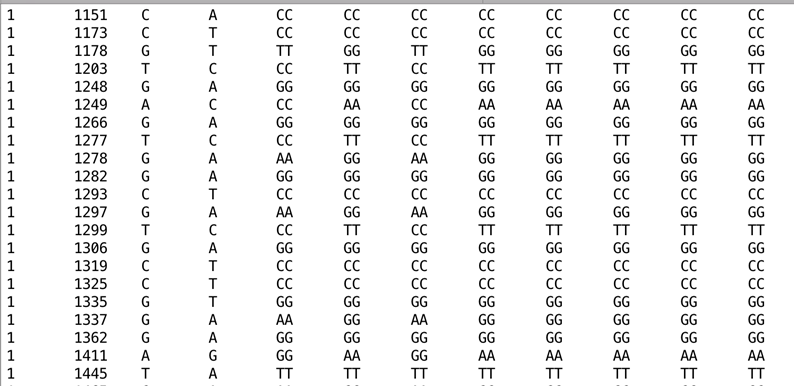

    2. Matrix output
  2. SNP Positions: Genomic coordinates for SNPs

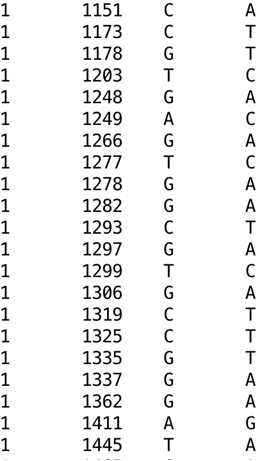

    SNP positions
  3. Sample list: A text file containing sample names (in the same order as in the genotype matrix)

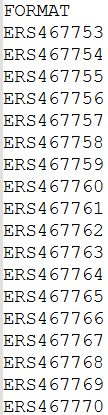

    Sample list

PROCESS

* Download the script vcftomatrix.sh

bash
invcf=${1? Input VCF file }   #  Raw_SNP_and_InDel/IRRI_lines_SNP_DP3_QD2_MQ30_QUAL30_FS60.vcf.gz}
pref=${2? Output dir}
mkdir -p $pref

bcftools query -f '%CHROM\t%POS\t%REF\t%ALT[\t%TGT]\n' $invcf |  tr "|" "/"  | \
 tr -d "/" | \
 sed "s:chr0\?::"  | \
 awk -v OFS="\t" '{$1 = $1 + 0; print $0}'  > ${pref}/mat_vcf.txt

cut -f1-4 $pref/mat_vcf.txt > $pref/pos.txt

bcftools view -o -   -h $invcf  |  grep CHR | tr "\t" "\n"  | tail -n+10 > $pref/sample_list.txt

* Usage: ./vcftomatrix.sh <input_vcf> <output_prefix>

* Verification: These output files will be used in the next pipeline stage to create an HDF5 file.

  1. mat_vcf.txt

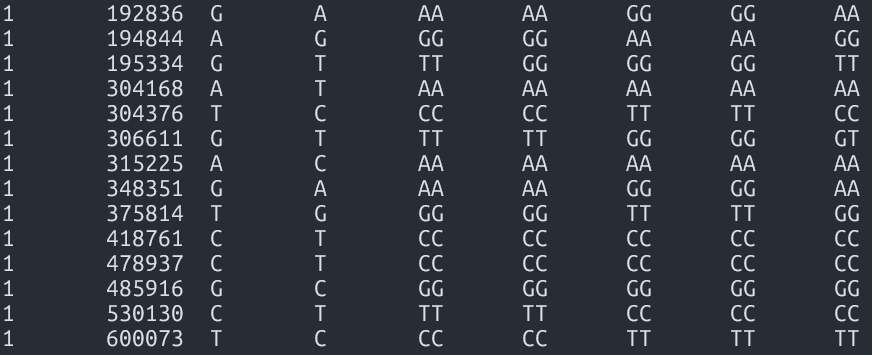

    mat_vcf.txt output
  2. pos.txt

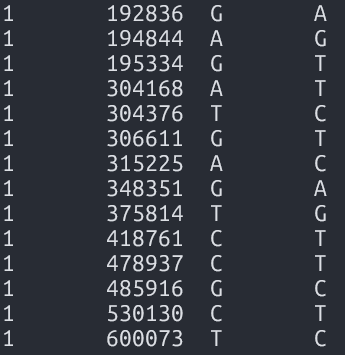

    pos.txt output
  3. sample_list.txt

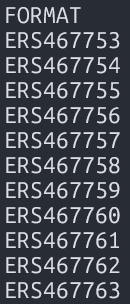

    sample_list.txt output

HANDS-ON EXERCISE

  1. Download the demo dataset here
  2. Extract the tar file: tar -xzvf demo.tar.gz
  3. Go to the demo folder: cd demo
  4. Run the script VCFtoMatrix.sh: ./scripts/vcftomatrix.sh dataset/sample.vcf output
  5. Verification:
    • mat_vcf.txt
    • pos.txt
    • sample_list.txt

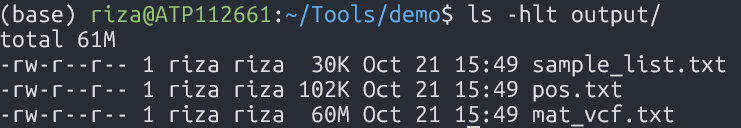

    Verification result

STEP 2: TABULAR MATRIX TO HDF5

PROCESS

* Download the script make_HDF_dataset.sh

bash
indir=${1? Input directory with files pos.txt sample_list.txt and mat_vcf.txt}
proj=${2? Output (project) prefix, e.g. ricerp }

#loadmatrix=./bin/loadmatrix_geno.v2.hdf1.10
loadmatrix=./loadmatrix_geno

n_snp=`wc -l $indir/pos.txt| awk '{print $1}' `
n_sampl=`wc -l $indir/sample_list.txt| awk '{print $1}' `

m=1000
n=64

if [[ ! -f "Matrix.txt" ]] ; then
ln -s $indir/mat_vcf.txt Matrix.txt
fi

# Transposed version: r=n_snp
r=$n_snp
$loadmatrix  -m $m -n $n -r $r \
-t \
 -o ${proj}_transp.h5 \
# -i $indir/mat_vcf.txt

* Usage: ./make_HDF_dataset.sh <path_text-file-matrix> <output_prefix>

* Verification: Check the HDF5 file structure after creation (*.h5)

h5ls <output_prefix>_transp.h5

Expected output: Dataset {SNPs, Samples}

HANDS-ON EXERCISE

  1. Run the following command: ./scripts/make_HDF_dataset.sh output/ sample
  2. Verification: h5ls sample_transp.h5
  3. Output: data Dataset {6920, 3024}

CHECKPOINT

✅ HDF5 file
✅ SNP positions
✅ Sample list
