Day 4: Data Preparation Pipeline for SNP-Seek

Note: To follow along this module, make sure to have completed the Day 4 setup guide.

The Two-Step Process

The data preparation involves two main steps:

1. Convert VCF to text matrix - Using custom scripts with awk and/or bcftools
2. Convert text matrix to HDF5 - Using a compiled C++ program for optimized storage

Step 1: VCF to Tabular Text Matrix, Sample List, and SNP Positions

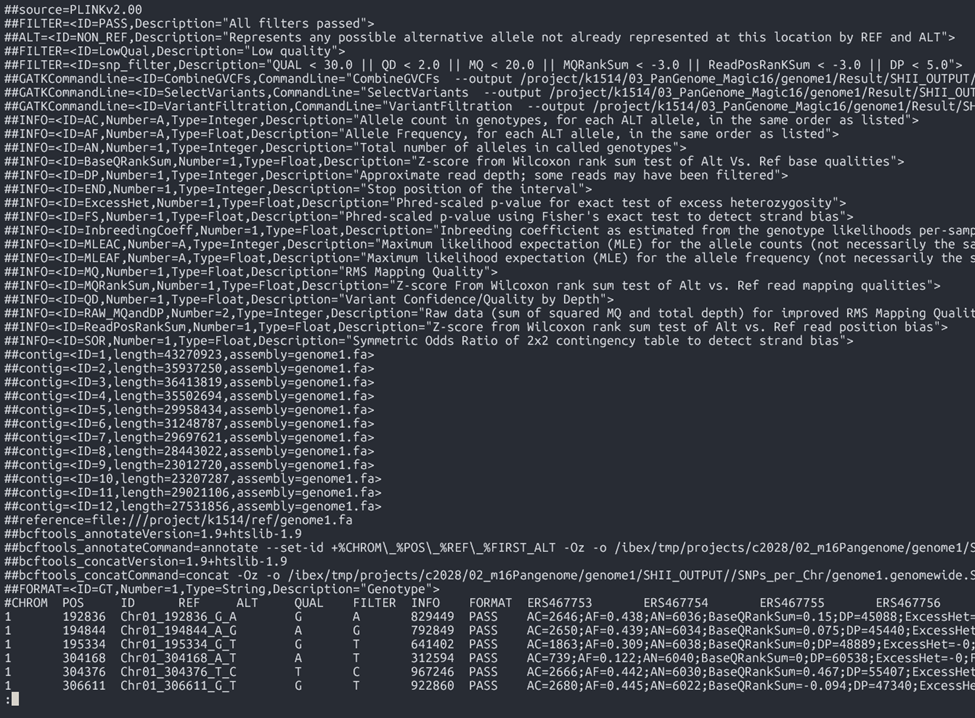

Input File (Variant Call Format)

A standardized file format used to store genetic variants, including their genomic positions, reference and alternate alleles, quality scores, and sample-specific genotype data. The detailed specifications for the format can be found in the official VCF specification document.

Output Files

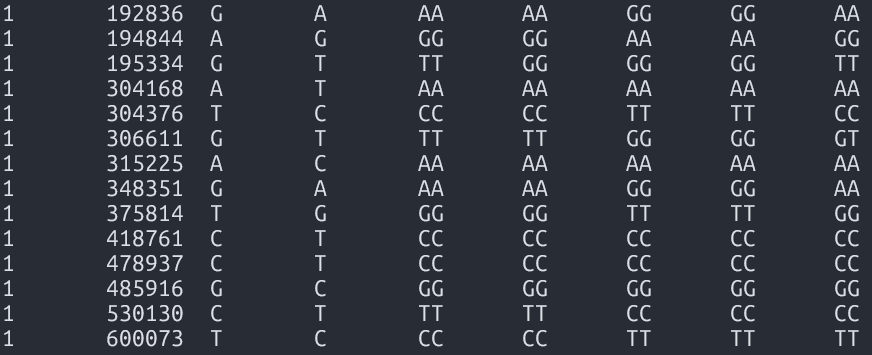

1. Matrix

   This is a matrix with rows corresponding to SNPs. The columns represent the following (from left to right):

   • CHR: Chromosome number
   • POS: SNP position
   • REF: Reference allele
   • ALT: Alternate allele
   • Sample columns: Diploid genotype calls (Sample1, Sample2, Sample3, etc.)

   Note: Missing calls can be encoded by either 00 or .. (two dots)

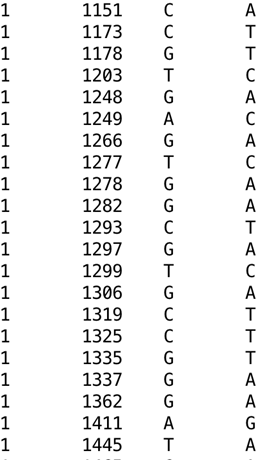

2. SNP Positions

   Genomic coordinates for SNPs



3. Sample list

   A text file containing sample names (in the same order as in the genotype matrix)



Process

• Download the script vcftomatrix.sh

  invcf=${1? Input VCF file }   #  Raw_SNP_and_InDel/IRRI_lines_SNP_DP3_QD2_MQ30_QUAL30_FS60.vcf.gz}

  pref=${2? Output dir}

  mkdir -p $pref

  bcftools query -f '%CHROM\t%POS\t%REF\t%ALT[\t%TGT]\n' $invcf |  tr "|" "/"  | \
   tr -d "/" | \
   sed "s:chr0\?::"  | \
   awk -v OFS="\t" '{$1 = $1 + 0; print $0}'  > ${pref}/mat_vcf.txt

  cut -f1-4 $pref/mat_vcf.txt > $pref/pos.txt

  bcftools view -o -   -h $invcf  |  grep CHR | tr "\t" "\n"  | tail -n+10 > $pref/sample_list.txt

• Usage

  ./vcftomatrix.sh <input_vcf> <output_prefix>

• Verification: These output files will be used in the next pipeline stage to create an HDF5 file.

  1. mat_vcf.txt
  2. pos.txt
  3. sample_list.txt

Hands-on exercise

1. Download the demo dataset here

2. Extract the tar file

   tar -xzvf demo.tar.gz

3. Go to the demo folder

   cd demo

4. Run the script VCFtoMatrix.sh

   ./scripts/vcftomatrix.sh dataset/sample.vcf output

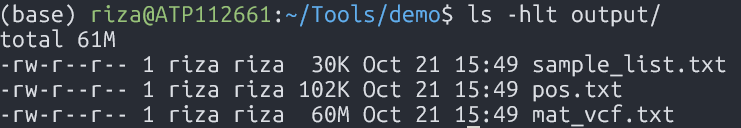

5. Verification

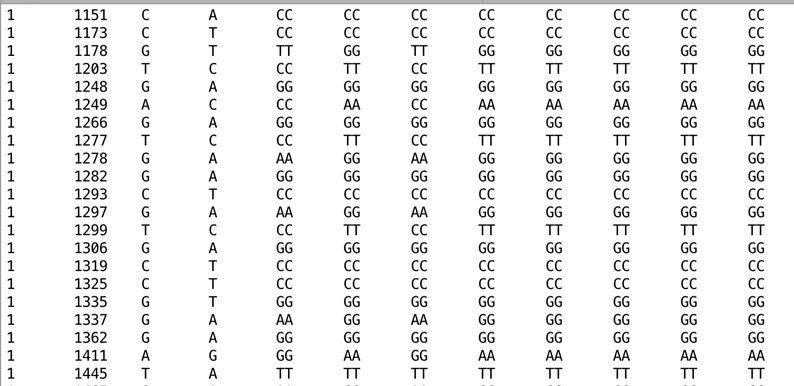

   • mat_vcf.txt

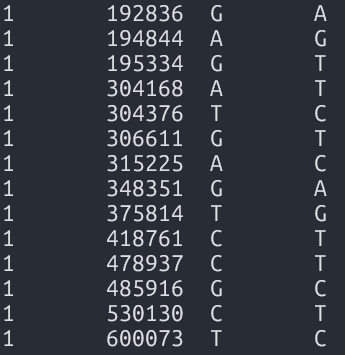

   • pos.txt



   • sample_list.txt



Step 2: Tabular Matrix to HDF5

Process

• Download the script make_HDF_dataset.sh

  indir=${1? Input directory with files pos.txt sample_list.txt and mat_vcf.txt}

  proj=${2? Output (project) prefix, e.g. ricerp }


  #loadmatrix=./bin/loadmatrix_geno.v2.hdf1.10
  loadmatrix=./loadmatrix_geno

  n_snp=`wc -l $indir/pos.txt| awk '{print $1}' `

  n_sampl=`wc -l $indir/sample_list.txt| awk '{print $1}' `

  m=1000

  n=64

  if [[ ! -f "Matrix.txt" ]] ; then
  ln -s $indir/mat_vcf.txt Matrix.txt
  fi

  # Transposed version: r=n_snp

  r=$n_snp
  $loadmatrix  -m $m -n $n -r $r \
  -t \
   -o ${proj}_transp.h5 \
  # -i $indir/mat_vcf.txt

• Usage

  ./make_HDF_dataset.sh <path_text-file-matrix> <output_prefix>

• Verification: Check the HDF5 file structure after creation (*.h5)

  h5ls <output_prefix>_transp.h5

  Expected output: Dataset {SNPs, Samples}

Hands-on exercise

1. Run the following command

   ./scripts/make_HDF_dataset.sh output/ sample

2. Verification

   h5ls sample_transp.h5

   Output: data Dataset {6920, 3024}

Checkpoint

✅ HDF5 file

✅ SNP positions

✅ Sample list
